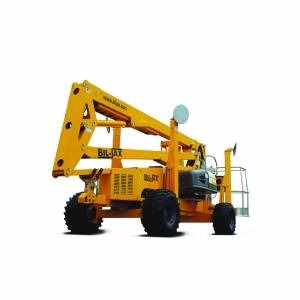

Bil-Jax® 45 ft. Self-Propelled Boom Lift

Lightweight 45-ft self-propelled boom lift. Air & water lines and 110V GFI-protected power to the platform. Has an automatic leveling system (leveling capacity-12.5") and self-leveling platform. Dual power source (DC/Gasoline) allows for indoor and outdoor use. Customer will need a suitably rated trailer to transport this lift. Delivery is available for an additional fee.

PROOF OF CERTIFICATE OF LIABILITY INSURANCE IS REQUIRED PRIOR TO RENTING

• Working height: 51-ft
• Platform height: 45-ft
• Horizontal outreach from centerline: 27-ft
• Horizontal outreach from edge of footpad: 21-ft
• Maximum Platform lift capacity: 500-lbs
• Platform size: 5-ft x 2-ft 6-in
• Length: 18-ft, 2-inches
• Width (Outriggers Stowed): 5-ft, 7-inches
• Width (Outriggers Extended): 13-ft, 6-inches
• Height (Stowed): 6-ft., 7-inches
• Weight: 5,200-lbs

Click Here To View User Manual
