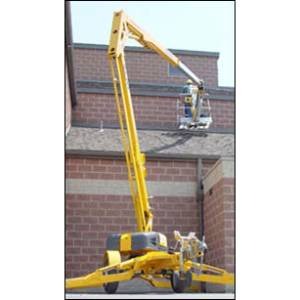

Bil-Jax® 45-ft Towable Boom Lift
Bil-Jax® 45-ft towable boom lift. Air & water lines and 110V GFI protected power to the platform. Has an automatic leveling system (leveling capacity-12.5") and self-leveling platform. Need 2" ball on your frame-mounted hitch to tow this lift. Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed.
PROOF OF CERTIFICATE OF LIABILITY INSURANCE IS REQUIRED PRIOR TO RENTING
- Working height: 51-ft
- Platform height: 45-ft
- Horizontal outreach from centerline: 27-ft
- Horizontal outreach- edge of footpad: 21-ft
- Maximum Platform lift capacity: 500-lbs
- Platform size: 4-ft 1-in x 2-ft 9-in
- Length: 20-ft, 8-inches
- Width (Outriggers Stowed): 5-ft, 7-inches
- Width (Outriggers Extended): 13-ft, 6-inches
- Height (Stowed): 6-ft., 5-inches
- Weight: 4,200-lbs
- Tongue weight: 290-lbs
