Please email litchfieldacerentals@gmail.com or call 860-567-8588 for all rental inquiries!

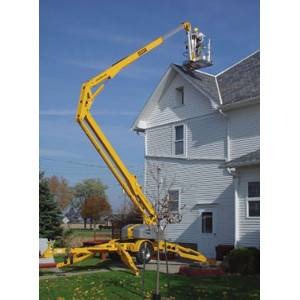

Bil-Jax® 55-ft Towable Boom Lift


1 Day- $365.00 USD

55-ft towable boom lift. Air & water lines and 110V GFI-protected power to the platform. Has an automatic leveling system (leveling capacity-12.5") and self-leveling platform. Need 2" ball on your frame-mounted hitch to tow this lift. Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed.

PROOF OF CERTIFICATE OF LIABILITY INSURANCE IS REQUIRED PRIOR TO RENTING

  • Working height: 61-ft 3-in
  • Platform height: 55-ft 3-in
  • Horizontal outreach from centerline: 33-ft 5-in
  • Horizontal outreach from edge of footpad: 27-ft 4-in
  • Maximum Platform lift capacity: 500-lbs
  • Platform size: 4-ft x 2 ft 6-in
  • Length: 23-ft, 8-inches
  • Width (Outriggers Stowed): 5-ft, 7-inches
  • Width (Outriggers Extended): 13-ft, 6-inches
  • Height (Stowed): 6-ft., 9-inches
  • Weight: 4,800-lbs
  • Tongue weight: 335-lbs

Click Here To View User Manual
