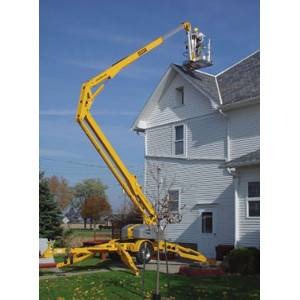

Bil-Jax® 55-ft Towable Boom Lift

55-ft towable boom lift. Air & water lines and 110V GFI-protected power to the platform. Has an automatic leveling system (leveling capacity-12.5") and self-leveling platform. Need 2" ball on your frame-mounted hitch to tow this lift. Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed.

PROOF OF CERTIFICATE OF LIABILITY INSURANCE IS REQUIRED PRIOR TO RENTING

• Working height: 61-ft 3-in
• Platform height: 55-ft 3-in
• Horizontal outreach from centerline: 33-ft 5-in
• Horizontal outreach from edge of footpad: 27-ft 4-in
• Maximum Platform lift capacity: 500-lbs
• Platform size: 4-ft x 2 ft 6-in
• Length: 23-ft, 8-inches
• Width (Outriggers Stowed): 5-ft, 7-inches
• Width (Outriggers Extended): 13-ft, 6-inches
• Height (Stowed): 6-ft., 9-inches
• Weight: 4,800-lbs
• Tongue weight: 335-lbs

Click Here To View User Manual
